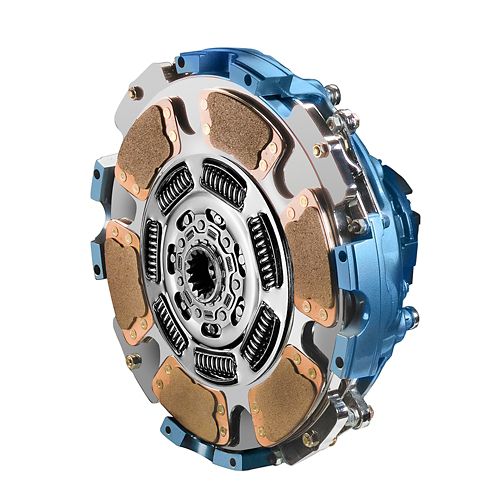

Eaton ECA 15.5 Inch Angle Spring Ceramic Clutch 2250 lb-ft

Eaton ECA 15.5-inch angle spring clutch for automated transmission applications, rated to 2,250 lb-ft of torque. This twin-disc clutch combines ceramic friction facings with a 2-inch, 14-spline input shaft specification.

Specifications

• Clutch design: ECA angle spring
• Transmission type: Automated
• Clutch diameter: 15.5 inches
• Torque capacity: 2,250 lb-ft
• Input shaft: 2-inch, 14-spline
• Number of discs: 2
• Facing material: Ceramic
• Damper spring count: 7
• Friction pad count: 6
• Torsional spring rate: 256 lb-ft per degree
• Pre-damper: No
• Hydraulic linkage: No
• Product height: 8.5 inches
• Product weight: 139 lb
• UPC: 840379301458

Confirm the clutch dimensions, input shaft specification and transmission compatibility against your existing installation before ordering.
